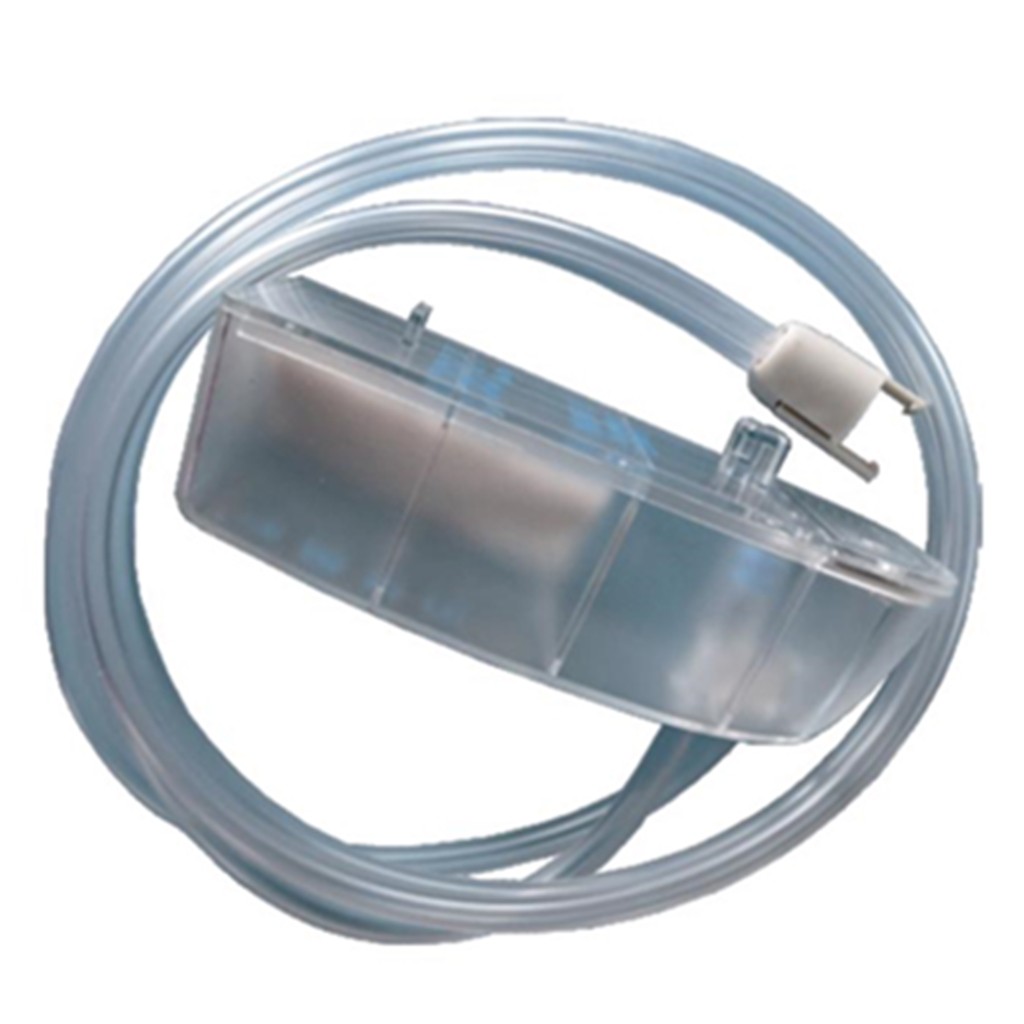

Collection canisters
140 mL and 450 mL options listed in the iNPWT catalog.
WOUND CARE / NPWT
iNPWT Intelligent Portable NPWT System
A compact negative pressure wound therapy system with Continuous and Dynamic modes, a color touchscreen and real-time pressure feedback.
Request a quote ↗Technical specifications
| Model | INPWT-S1 |
|---|---|
| Negative pressure range | −50 to −225 mmHg |
| Modes | Continuous and Dynamic |
| Dimensions (H × W × D) | 146 × 135 × 77 mm |
| Weight | Approximately 0.75 kg |
| Canister options | 140 mL and 450 mL |
| Battery | 12–16 hours; 2.2 Ah / 11.1 V, as listed in the catalog |
| Recharge time | 3.5 hours, as listed in the catalog |
| Display | Color touchscreen |
| Alarms | Leakage, blockage and low battery |
| Power | Internal lithium-ion battery or 110–240 V AC input |
Reference specifications from the product catalog. Confirm the supplied configuration and battery conditions with our team.
System features
| Pressure feedback | Double-tube pressure feedback system with pump-output adjustment. |
|---|---|
| Seal check | Leak-rate indication with audible and visual feedback. |
| Controls | Color touchscreen and patient lockout. |
| Portable configuration | Carry bag and quick-release canister options. |
Accessories & supply
Tubing & pads
Confirm the correct tubing and connector for the selected system.
Adhesive drapes
Drape, foam and pad requirements can be discussed together.
